UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app Motor: Specialized 3.1 Motor, 105Nm torque, 810W power Charger: Specialized 4amp charger Battery: 840Wh battery
Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm Seat Binder: Alloy, 38.6mm
Fork: FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel Rear Shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Front Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor Rear Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Rear Derailleur: SRAM X0 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery) Shift Levers: SRAM AXS Pod Controller w/discrete clamp Cassette: SRAM XO 1295, 12 speed, 10-52 Chain: SRAM X0 Crankset: SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm Chainrings: SRAM 34T T-Type chainring, 104 BCD, steel
Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" Inner Tubes: Standard, Presta valve
Handlebars: RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2: 20mm Rise, S3-S6: 40mm Rise, 800mm Stem: Industry 9 Mountain stem, 35mm clamp, 40mm length Saddle: Bridge Mimic Expert, Hollow Ti rails SeatPost: Bike Yoke Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5/S6: 213mm Grips: Deity Lockjaw grips
SWAT: SWAT internal downtube storage
Weight: 23.94kg (52 lb, 12.5 oz) (Size: S4) Product ID: 218702 Compliance: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

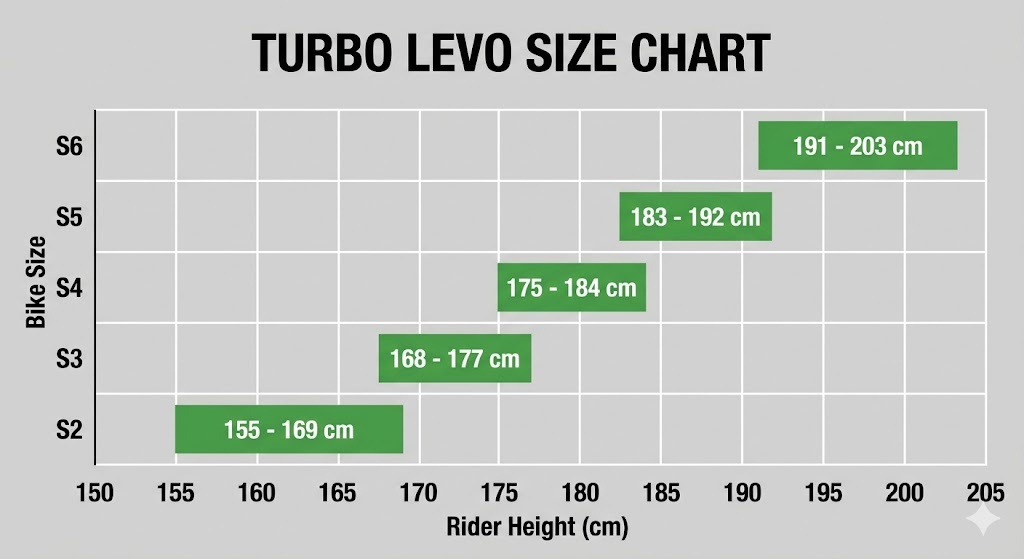

This is our simplified version of Specialized's size chart. We believe their official chart has a bit too much overlap, which can easily get confusing! For the absolute best fit, contact us or visit the store to test them out!
