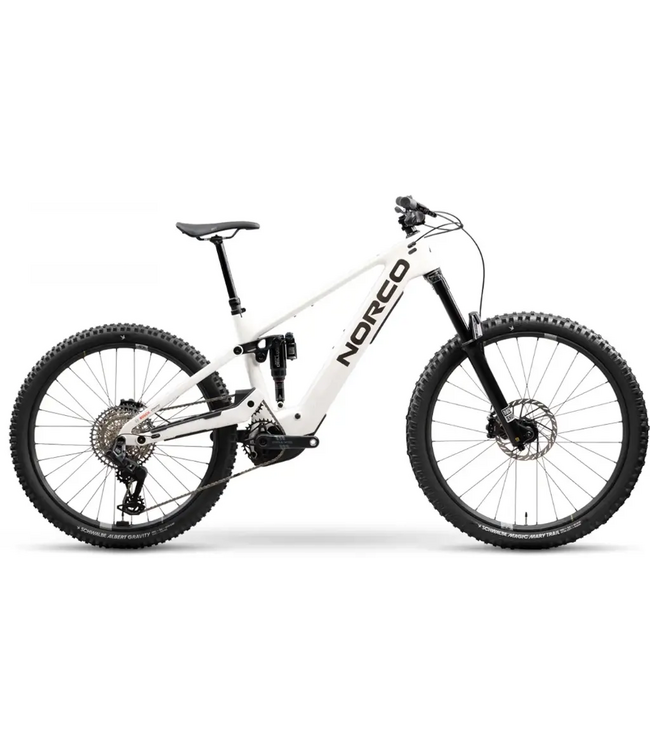

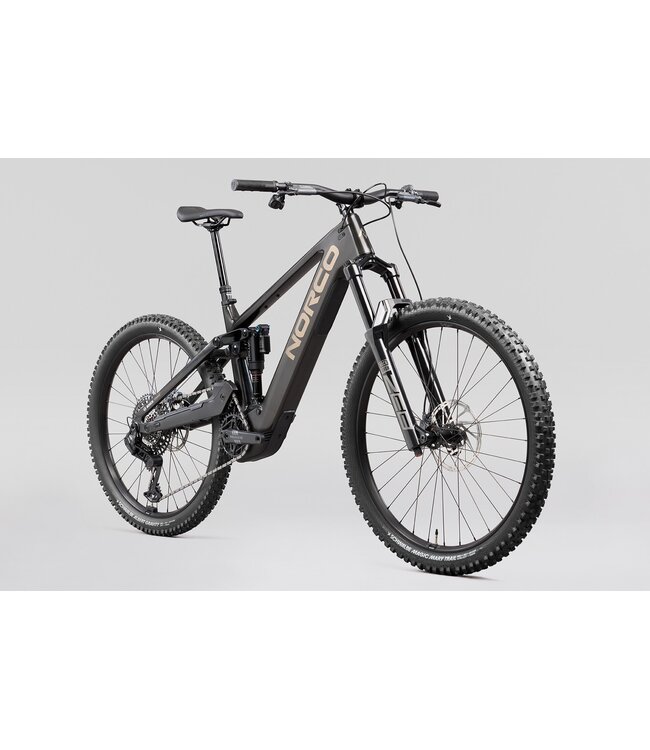

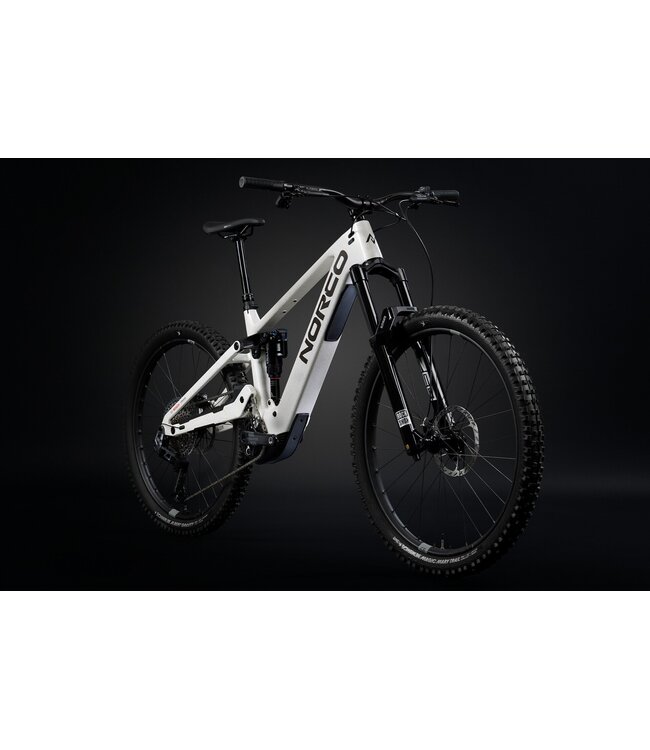

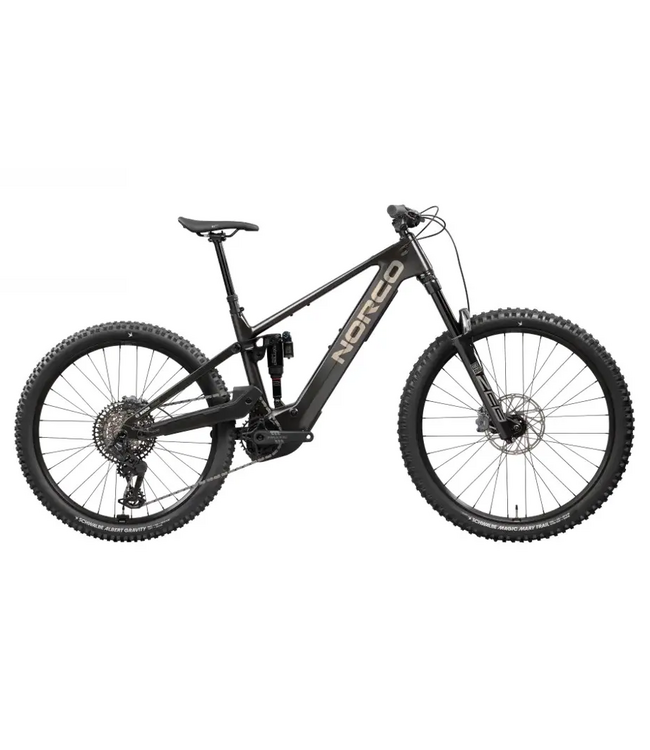

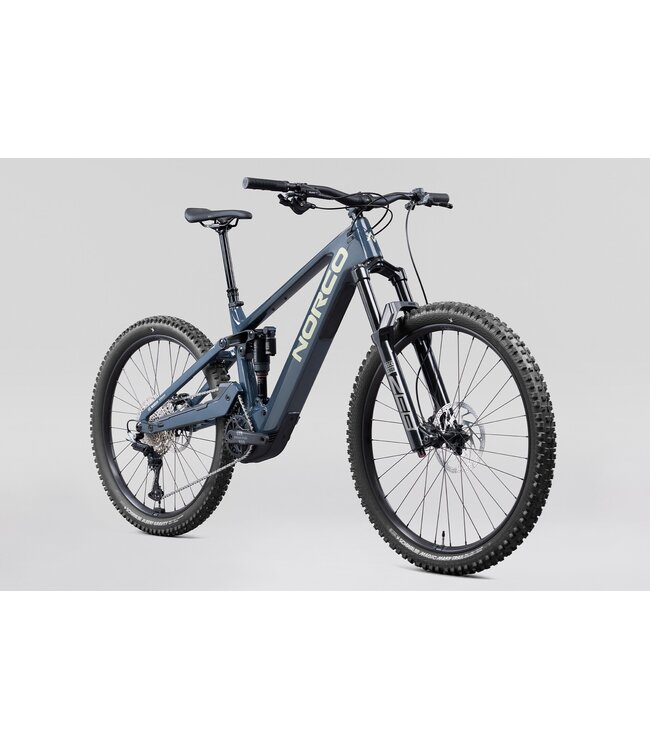

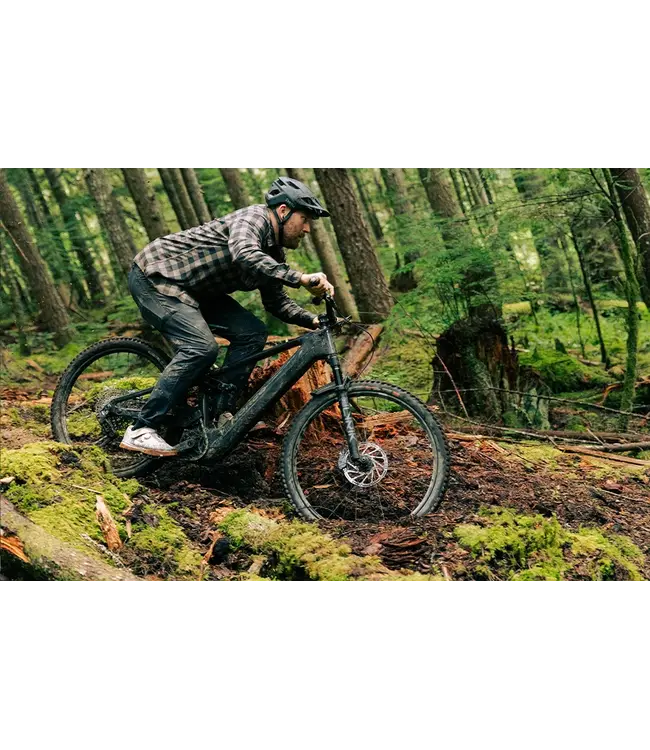

The Sight VLT CX is all about balance, boosting riders' confidence to go hard and trust their bike. The high pivot layout combined with 160/150mm travel makes this bike punch above its weight without losing snappy playfulness. Available in three different models, you’ll be able to choose the spec build that best suits your riding style.
Continuous development of our VLT lineup means the Sight VLT CX is almost 20% lighter than our previous generation, with a larger battery and improved riding noise, all without compromising on the exceptional torque and power the Bosch CX system is known for.
With Up to 120Nm of maximum torque, Up to 750W of peak motor power, and up to 600% support, this setup provides an ideal blend of power and enjoyment while balancing wear and range.
The powder-coated, magnesium battery housing of the Bosch Performance CX Motor is corrosion-resistant, strong, and built to withstand harsh conditions. Its sealing system keeps water out, ensuring reliability in all weather.

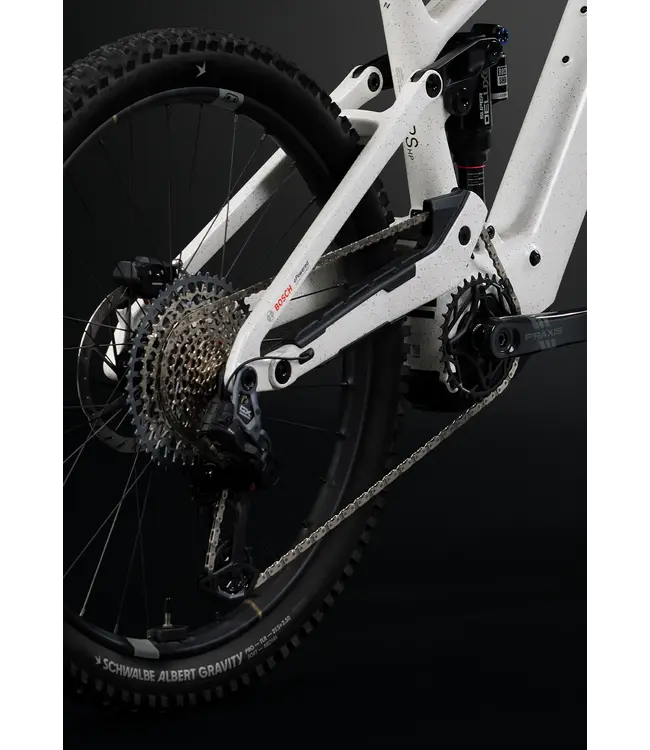

The Sight VLT CX inspires confidence in challenging terrain, with its rearward axle path, idler, and advanced suspension system. Tackle the toughest trails with precision and control.
PSHP is the next evolution of Norco’s VPS suspension platform building off years of trail and all-mountain suspension development experience.
This design shares many similarities with our VPS layout, including a rear axle and brake mounted to the seatstay, rotating about a virtual instant center controlled by chainstay and upper rocker link, while also adding the high pivot benefits of increased rearward axle path.
Confidence in the front, control at the rear. Size-specific chainstay lengths and a mixed wheel setup ensure balanced handling and perfect kinematics across all frame sizes
| FRAME | Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| FORK | RockShox Zeb Select,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included |
| REAR SHOCK | Rock Shox Super Deluxe Select HBO, 205x60mm TR |
| HEADSET | FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| GRIPS | WTB Wavelength, 140mm Length |
| HANDLE BAR | Norco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5) |
| STEM | Norco 6061, 40mm Length, 35mm Clamp |
| SEAT POST | TranzX YSP23KL, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5) |
| SADDLE | WTB Rocket Fusion Med, 142x250 mm |
| FRONT BRAKE | TRP Slate EVO, Oraganic Pads |
| FRONT BRAKE ROTOR | TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt |
| REAR BRAKE | TRP Slate EVO, Oraganic Pads |
| REAR BRAKE ROTOR | TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt |
| BRAKE LEVERS | TRP Slate EVO |
| SHIFTER REAR | Shimano Deore SL-M6100-R, 12spd |
| REAR DERAILLEUR | Shimano Deore RD-M6100, SGS, 12spd |
| CASSETTE | Shimano Deore CS-M6100-12, 10-51T, 12sp |
| CHAIN | Shimano Deore CN-M6100, 12spd |
| CRANKSET | Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5) |
| BOTTOM BRACKET | Bosch BDU38 |
| FRONT HUB | Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock |
| REAR HUB | Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock |
| SPOKES/NIPPLES | Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel |
| RIMS | WTB ST i30 TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R |
| FRONT TIRE | Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5" |
| REAR TIRE | Schwalbe Albert, Gravity Pro, Soft, Radial, 27.5x2.5" |
| DRIVE UNIT | Bosch Performance Line CX, 100 Nm / 750W |
| BATTERY | Bosh Power Tube 800 Wh |

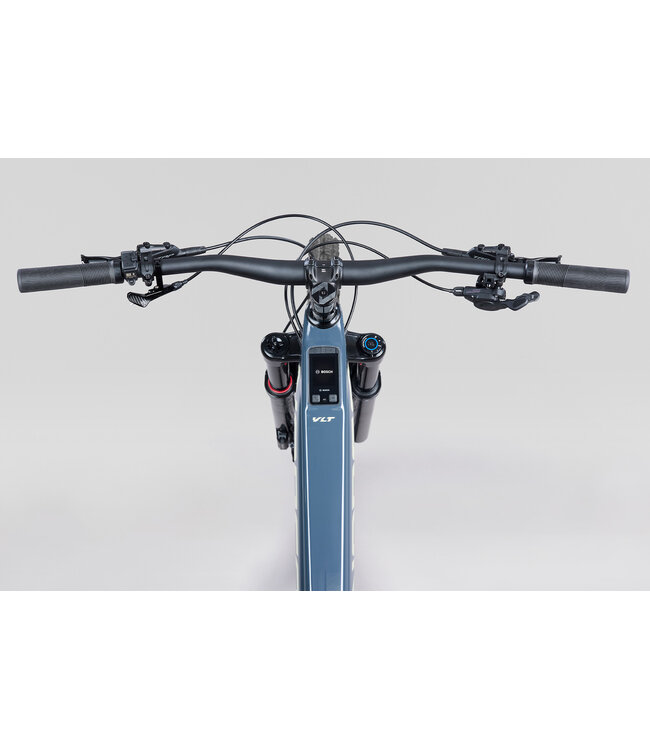

| DISPLAY | Kiox 400c |
| TOOL | OneUp EDC Lite |
| FRAME | Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| FORK | RockShox Zeb Select+,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included |
| REAR SHOCK | RockShox Super Deluxe Select+ HBO, 205x60mm TR |
| HEADSET | FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| GRIPS | WTB Wavelength, 140mm Length |
| HANDLE BAR | Norco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5) |
| STEM | Norco Alloy, 40mm Length, 35mm Clamp |
| SEAT POST | TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5) |
| SADDLE | WTB Rocket Fusion Med, 142x250 mm |
| FRONT BRAKE | SRAM Maven Bronze, Metallic Pads |
| FRONT BRAKE ROTOR | SRAM HS2, 200mm, 2mm thickness, 6 bolt |
| REAR BRAKE | SRAM Maven Bronze, Metallic Pads |
| REAR BRAKE ROTOR | SRAM HS2 180mm, 2mm thickness, 6 bolt |
| BRAKE LEVERS | SRAM Maven Bronze |
| SHIFTER REAR | SRAM AXS POD Controller, Discrete Clamp |
| REAR DERAILLEUR | SRAM S1000 Eagle AXS T-Type, 12sp |
| CASSETTE | SRAM 1275 Eagle T-Type, 10-52T, 12sp |
| CHAIN | SRAM Eagle 70 T-Type, 12spd |
| CRANKSET | Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5) |
| BOTTOM BRACKET | Bosch BDU38 |
| FRONT HUB | Bear Pawls BMB-003,15x110mm Boost, 32H, 6 Bolt |
| REAR HUB | DT Swiss 370, 12x148 Boost,XD, 32H, 6 Bolt |
| SPOKES/NIPPLES | Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel |
| RIMS | WTB KOM Team i30 TCS 2.0, 30mm, 32H, 29"-27.5 F/R |
| FRONT TIRE | Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5" |
| REAR TIRE | Schwalbe Albert, Gravity Pro, Soft, Radial, 27.5x2.5" |
| DRIVE UNIT | Bosch Performance Line CX, 100 Nm / 750W |
| BATTERY | Bosh Power Tube 800 Wh |
| DISPLAY | Kiox 400c |
| TOOL | OneUp EDC Lite |
| FRAME | Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| FORK | RockShox Zeb Ultimate Charger 3.2,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included |
| REAR SHOCK | RockShox Super Deluxe Ultimate HBO, 205x60mm TR |
| HEADSET | FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| GRIPS | WTB Wavelength, 140mm Length |
| HANDLE BAR | One Up Carbon, 800mm, 35mm Rise |
| STEM | Norco Alloy, 40mm Length, 35mm Clamp |
| SEAT POST | SDG Tellis V2, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5) |
| SADDLE | WTB Rocket Fusion Med, 142x250 mm |
| FRONT BRAKE | SRAM Maven Silver, Organic Pads |
| FRONT BRAKE ROTOR | SRAM HS2, 200mm, 2mm thickness, 6 bolt |
| REAR BRAKE | SRAM Maven Silver, Organic Pads |
| REAR BRAKE ROTOR | SRAM HS2 180mm, 2mm thickness, 6 bolt |
| BRAKE LEVERS | SRAM Maven Silver |
| SHIFTER REAR | SRAM AXS POD Controller, Discrete Clamp |
| REAR DERAILLEUR | SRAM GX Eagle AXS T-Type, 12sp |
| CASSETTE | SRAM 1275 Eagle T-Type, 10-52T, 12sp |
| CHAIN | SRAM GX Eagle T-Type, 12sp |
| CRANKSET | Praxis HD Carbon Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5) |
| BOTTOM BRACKET | Bosch BDU38 |
| FRONT HUB | Crank Bros. Synthesis, 15x110mm Boost, 32h, 6 Bolt |
| REAR HUB | Crank Bros. Synthesis, 12x148mm Boost, XD, 32h, 6 Bolt |
| SPOKES/NIPPLES | Sapim D-Light (front), Sapim Race (rear) |
| RIMS | Crank Bros. Synthesis Carbon Enduro, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5" F/R |
| FRONT TIRE | Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5" |
| REAR TIRE | Schwalbe Albert, Gravity Pro, Soft, Radial, 27.5x2.5" |
| DRIVE UNIT | Bosch Performance Line CX, 100 Nm / 750W |
| BATTERY | Bosh Power Tube 800 Wh |
| DISPLAY | Kiox 400c |
| TOOL | OneUp EDC Lite |
