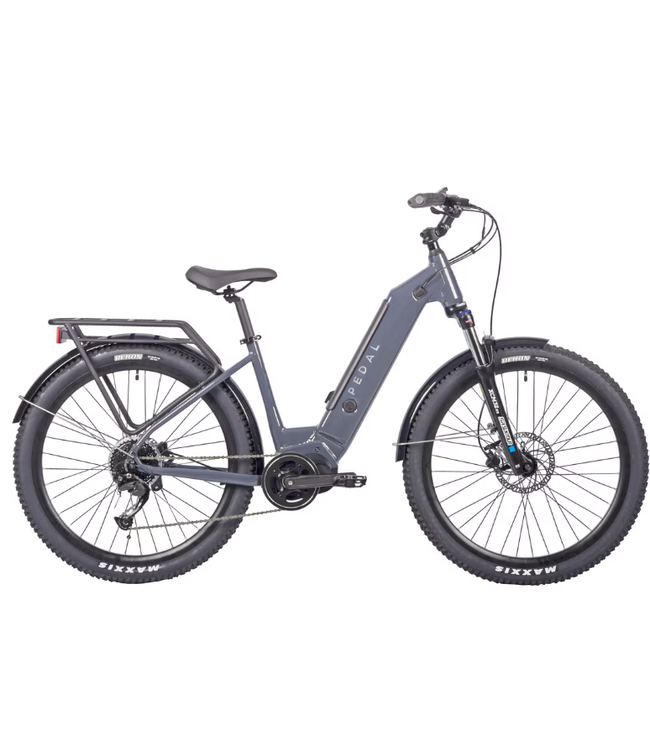

The Lynx 3 Step Through is for a commuter or all-rounder who can't justify German-brand money, the Lynx provides a great “do it all” approach to ebike life, by providing mid drive refinement and a decently sized battery at an industry leading price point. With a 27.5" wheel and Mountain Bike tyres it's very capable of a little off roading too!
| ACCESSORIES | Kickstand, 42V 2A Charger (3 pin for 36V Battery), HD 4 bolt pannier rack |
|---|---|
| BOTTOM BRACKET | Ananda |
| BRAKES | Tektro HD-M275 |
| CASSETTE | Shimano Wide Ratio 9 Speed |
| CHAIN | Shimano 9 Speed |
| CRANKSET | Ananda 38T Narrow Wide 170mm Square Taper Alloy |
| DERAILLEUR REAR | Shimano 9 Speed |
| FENDER | PVC for 27.5 x 2.4" Tyre w/suspension fork clamps |
| FORK | Suntour XCM32 Coil QR |
| FRAME | Step Through Alloy 6061 Removable Battery |
| GRIP | HL-G315 L/R:136.5MM, CLOSED END,ALLOY LOCK |
| HANDLEBAR | W:680MM, R:28MM, BACKSWEEP:30D,BARBORE:31.8MM, |
| HANDLEBAR STEM | A HEAD, EXT:105MM H:41MM,BAR BORE:31.8MM,ED BOLT |
| HEADSET | A HEAD,28.6MM,44*56MM,W/15MM RESIN BLACK CONE, H=20MM |
| HUBS | F: SF-A262F 36h QR 100mm 6 bolt LBB / R: SF-A262R 36h QR 135mm 6 bolt LBB |
| PEDALS | 9/16 Platform Resin |
| RIM | RD-H30 27.5"*36H*14G, DOUBLE WALL, F/V W/EYELETS |
| ROTOR FRONT | 180mm 6 bolt |
| ROTOR REAR | 160mm 6 bolt |
| SADDLE | SELLE ROYAL 4007HRN SPORT ERGO |
| SHIFTERS | Shimano 9 Speed Trigger |
| FEATURES |
|
| MOTOR/DRIVE UNIT | Ananda M81 CAN Mid Drive 250W 25KPH 36V 25KPH |
| MOTOR BRAND | ANANDA |
| MOTOR POWER (WATTS) | 250 |
| MOTOR TORQUE (NM) | 80 |
| BATTERY | Removable Downtube style CANBUS w/Internal BMS |
| BATTERY SIZE (WATT-HOURS) | 468 |
| EBIKE DRIVE SYSTEM | Mid Drive |
| DISPLAY | D18 + CAN |
| CHARGE TIME (HOURS) | 6 |
| ASSIST MODES | 5 Modes |
