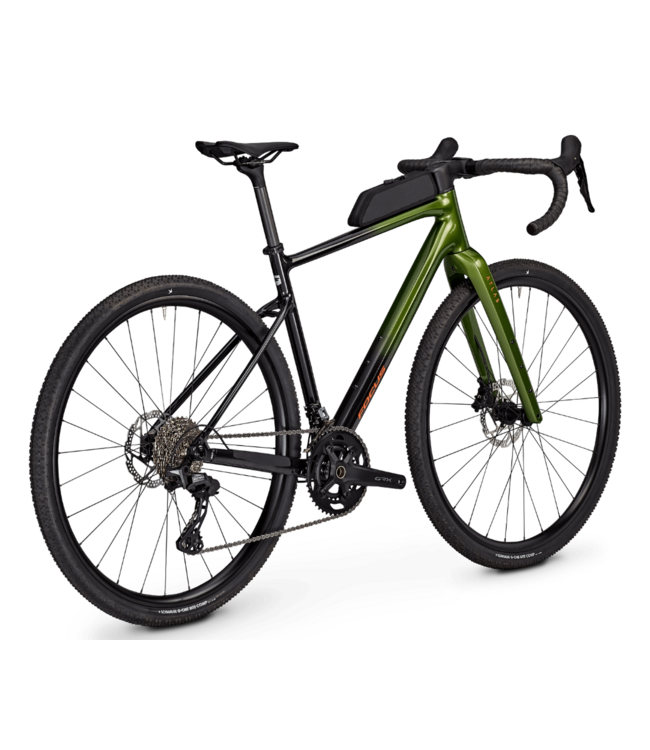

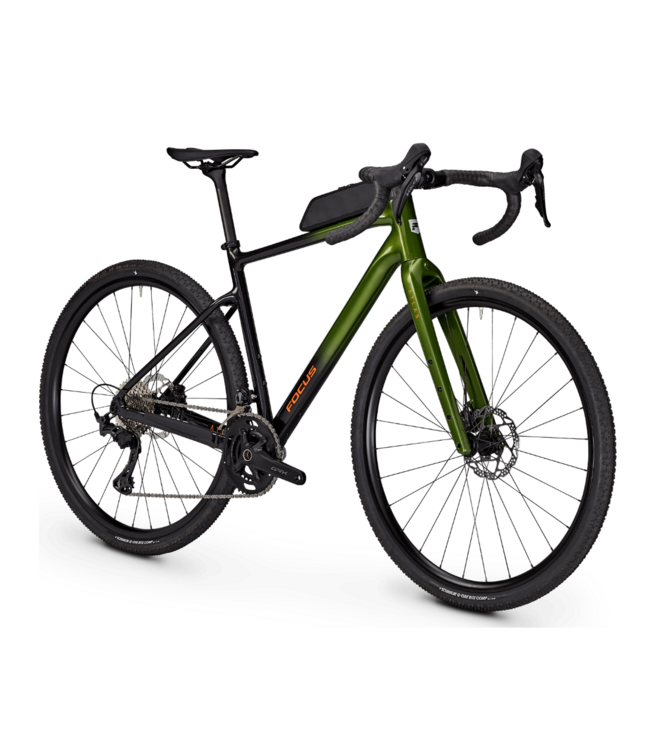

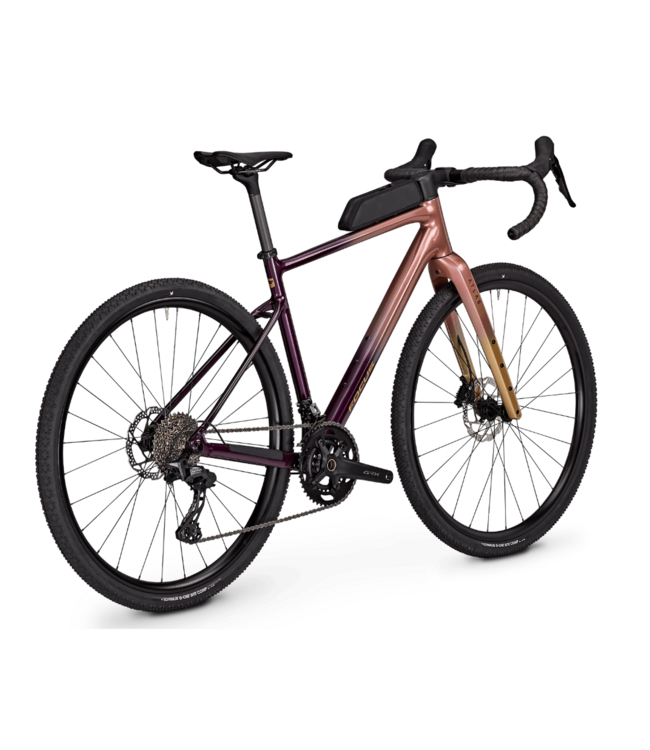

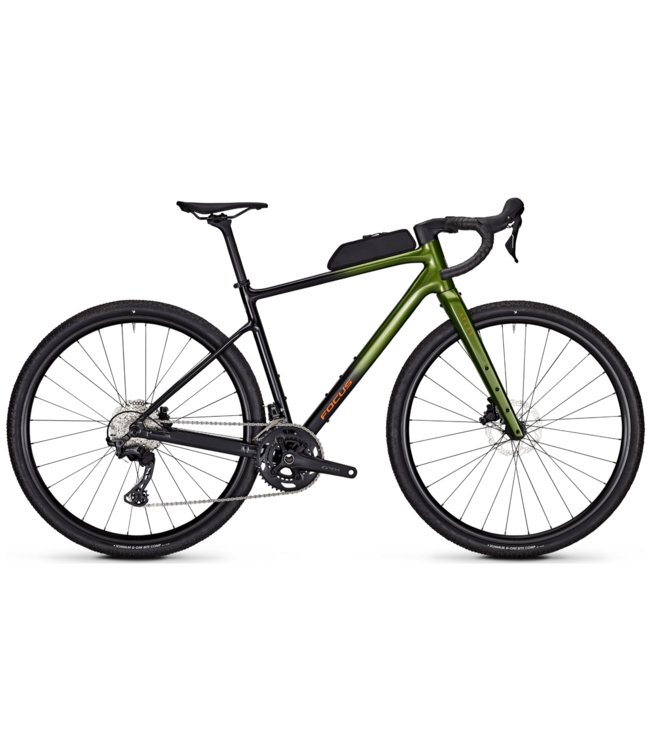

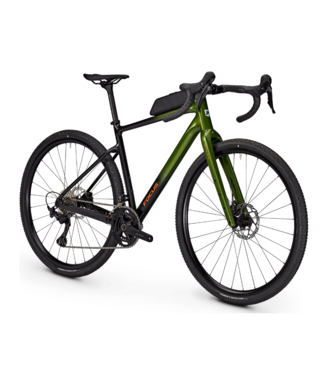

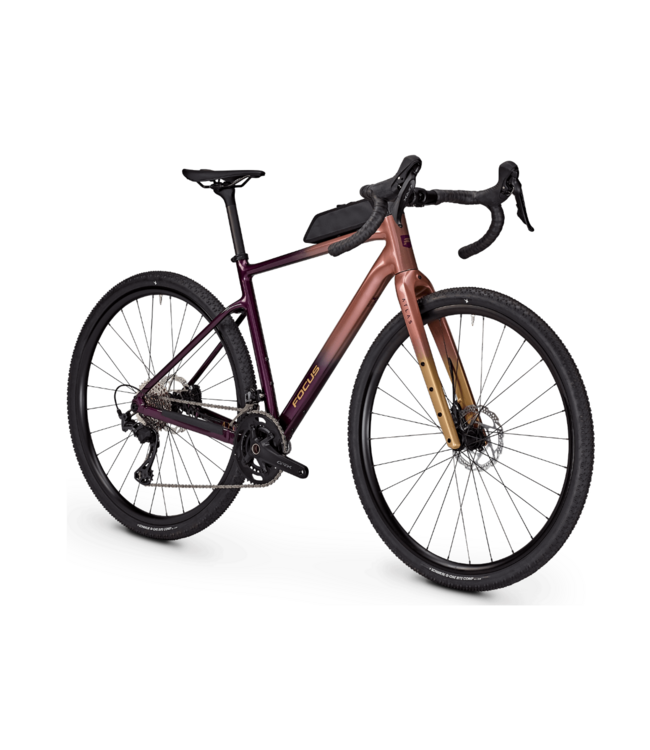

The sun is rising, and your next great adventure is about to begin. Whether you are looking to lose track of time on gravel backroads, tackle rugged fire trails, or head out on a multi-day bikepacking expedition, the new FOCUS ATLAS 6.9 is built to take you there—and way beyond.
Reengineered for even more agility without sacrificing its signature stability, the latest 6-series features a shorter wheelbase for snappy handling, an optimized geometry for a responsive ride, and a shorter seat tube that allows for more seatpost flex and premium comfort. Built with a robust aluminum frame, a carbon fork, and countless mounting points, the ATLAS 6.9 answers every luggage question with a resounding “yes.”
Adventure-Ready Versatility: Fully equipped with integrated mounting points on the frame and fork (supporting up to 3 kg per side) for all your bags, cages, and racks.
Refined 6-Series Geometry: More agile, responsive handling with a lower stack height and enhanced comfort over long distances.
Modern Standards, Zero Hassle: Bye-bye Road Boost! The ATLAS utilizes standard 12x100mm front and 12x142mm rear thru-axles, alongside a reliable BSA bottom bracket for effortless maintenance and wide compatibility.
Massive Tire Clearance: Comes equipped with aggressive 45 mm tires, with enough fork clearance to run up to a massive 53 mm front tire (48 mm in the rear).
Premium Look: Clean aesthetics featuring leveled welds (putty) and the proprietary C.I.S. 2.0 integrated stem that neatly routes cables out of sight.
| Component | Specification |
| Frame | 6061 Aluminium, disc, 142x12 mm thru axle, flat mount 160 mm, BSA BB |
| Fork | Carbon technology, disc, 100x12 mm thru axle, flat mount 160 mm |
| Drivetrain | Shimano GRX 820, 2x12-speed |
| Front Derailleur | Shimano GRX 820 |
| Rear Derailleur | Shimano GRX 820, 12-speed |
| Shifters / Brakes | Shimano GRX 610 |
| Crankset | Shimano GRX 610, 46/30T |
| Cassette | Shimano CS-HG710, 11-36T |
| Chain | Shimano CN-M6100 |
| Handlebar | Focus Gravel Bar, alloy, 70 mm reach, 114 mm drop, 16° flare |
| Stem | FOCUS C.I.S. 2.0 integrated, -8°, with integrated Garmin / Wahoo Mount |
| Seatpost | Carbon, 27.2 mm, 15 mm set-back (Min. 100 mm insert required) |
| Wheelset | Rodi Blackjack SL 25 alloy rims (23 mm height, 25 mm internal width) with Alexrims hubs |
| Tyres | Schwalbe G-One Bite, tubeless-ready, 45-622 (700x45c) |
| Brake Rotors | Shimano RT54, Front: 180 mm (Sizes L-XL) / 160 mm (Sizes XS-M), Rear: 160 mm |
| Weight | 10.4 kg (Size M, standard spec without pedals) |
| Max System Weight | 135 kg (Bike, rider, and gear combined) |
